製品の説明
Body Composition Analysis Machine Full Body Scanner Fat Percentage Meter
Product Specifications:
|
|
|
|
|
Weight, height, BMI, body shape, ideal weight, weight control, healthy weight range; basic assessment: fat mass, body fat percentage, body water content, water percentage, skeletal muscle mass, muscle mass, muscle percentage, basal metabolism, waist-to-hip ratio, etc.
|

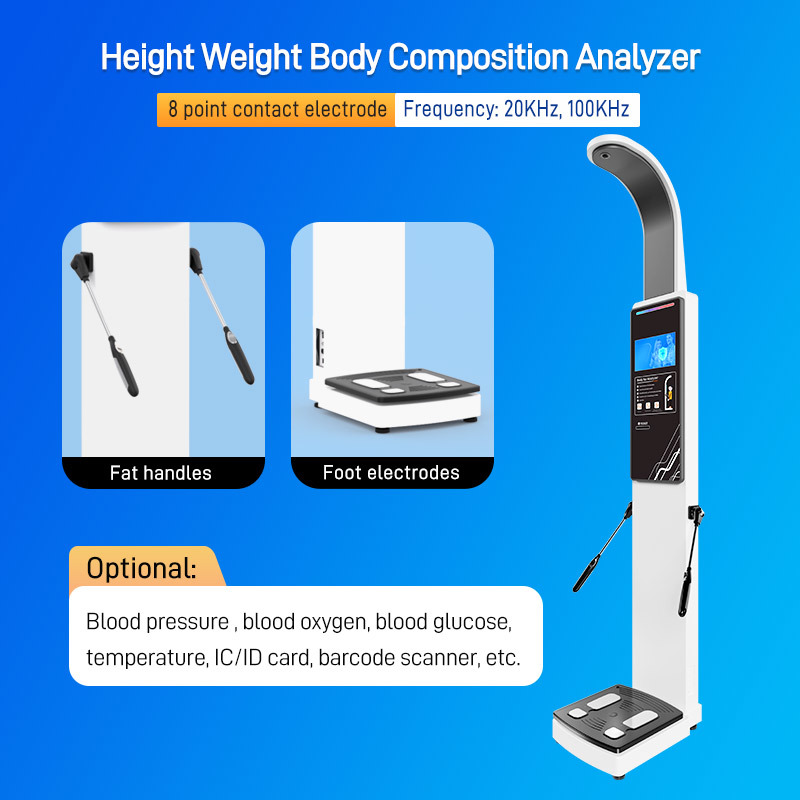

Body composition analyzer
|
8-point contact electrode, multi-frequency bioelectrical impedance (BIA)
|
|
Frequency: 20KHz, 100KHz
|
|
Impedance measurement range: 10-2000Ω
|
|
Current: ≤420±20μA
|
|
Segments:5 parts (left arm, right arm, trunk, left leg, right leg)
|
|
|
Measure range: 20-205cm
|
|
accuracy: ±0.5cm, division value: 0.5cm or 0.1cm adjustable
|
|
Measure mode: ultrasonic probe
|
|
|
Measure range: 5-500kg
|
|
accuracy: ±0.1kg, division value: 0.1kg or 0.01kg adjustable
|
|
Measure mode: precise balanced sendor
|
|
Languages
|
Supports 17 languages including Spanish and Arabic, English, can switch languages freely.
|
|
Display Mode
|
AI robot guided operation, HD LCD 10.2-inch display touch system, play pictures and videos in standby mode.
|
|
Report Output
|
①Thermal printing; ②scan QR code by phone to view report and download the A4 report; ③A4 printer optional
|
|
Payment methods
|
Coin/paper money/Nayax card payment (optional)
|
|
Coin operated(Optional)
|
The coin acceptor can recognize coins from different countries. The coin size is 15mm-29mm in diameter and 1.8mm-3.0mm in thickness
|
|
Power Supply Voltage
|
AC160v-250v,50HZ
|
|
Data Output Format
|
Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45
|
|
Overall dimension
|
550*390*2350mm /LWH(mm)
|
|
Packing Size
|
180*49*22cm(20kg) 68*49*40cm(20kg) 0.3CBM
|
|
Identify(Optional)
|
Face recognition, QR code/barcode, Enter account/mobile number,IC/ID card, etc.
|
Certifications:
Product Description:

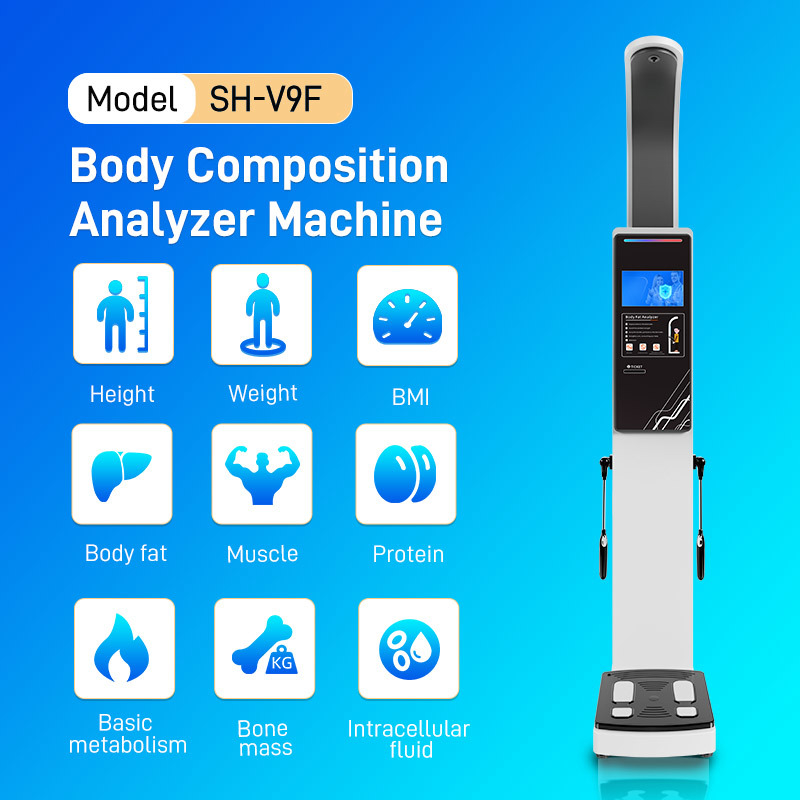

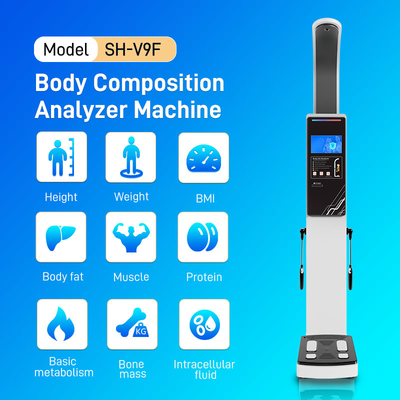

SH-V9F Height Weight Body Fat Machine Functions:
1.Face recognition (optional)
2.Fully automatic measurement of height and weight, automatic sensing system
3.Ultrasonic technology to measure height (temperature compensation)
4.Precision balance beam resistance strain sensor
5.Intelligent calculation of BMl
6.HD LCD 10.2-inch display touch system, play pictures and videos in standby mode
7.Coin operated/paper money (optional)
8.8-electrode human bioelectrical impedance method (BIA)
9.High-speed thermal printing, automatic printing of measurement results
10.Displays indoor temperature and current time
11.Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45
12.It can be connected with a computer, and the results are transmitted to the customer's Software.
13.Supports multiple languages and can switch languages on the screen.
14.Expansion: barcode/QR code, IC/ID card etc.

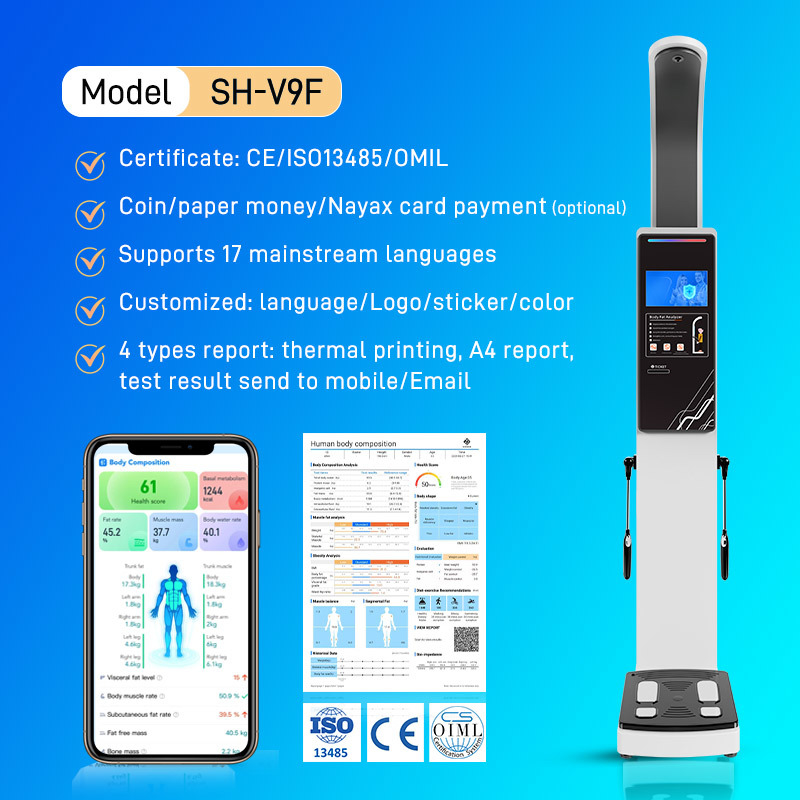

15.Report Output:Thermal printing, test result send to mobile, A4 printing/test result send to email/view reports on the cloud platform(optional)
Top Selling Product:
Our Advantages:
1. 24 hours to reply your inquiries and 72 hours solution response.
2. For one year free warranty and after-sales online technology support.
3. Can provide your best software and hardware customization solution if you need.
4. All scales already exported many countries, support your own logo,OEM/ODM service
5. Own Experienced R&D and factory to help your better use our products, and help you grow your market business based on we have the range of distributor policy.
6. Offer you best solution is our honor! SHANGHE do hope we can build good partnerships in the long term business and help you expand your sales!
