商品の詳細:
|
|
| 起源の場所: | 河南省、中国 |
|---|---|
| ブランド名: | SHANGHE |
| 証明: | CE/ISO13485/OMIL |
| モデル番号: | SH-T17 |
| 書類: | SH-T17-2.pdf |
|
お支払配送条件:
|
|
| 最小注文数量: | 1セット |
| 価格: | 11399usd |
| パッケージの詳細: | 170*64*138cm(110kg) |
| 受渡し時間: | 5～15日 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給の能力: | 月あたり6000セット |
|
詳細情報 |
|||
| 製品名: | 医療機器 健康診断キオスク 心電図装置 体組成計における臨床分析 遠隔医療キオスク | キーワード: | 医療機器健康診断キオスク |
|---|---|---|---|
| 証明書: | CE/ISO13485/OMIL | 材料: | 金属のキャビネット |
| カスタマイズされた: | 言語/ロゴ/ステッカー/色 | 脂肪測定: | 測定範囲：体脂肪率:5.0-75% ; 基礎代謝量:385kcal-5000kcal; |
| 血圧: | 0-299mmHg ((0kPa-39.9kPa); パルス範囲:40-180拍/分 | 電源電圧: | AC100V-240V(50Hz/60Hz); |
| 言語: | 英語を含む23以上の言語をサポートし、自由に言語を切り替えることができます | 使用法: | 病院、診療所、薬局、学校、スポーツジム、ショッピングモールなど |
製品の説明

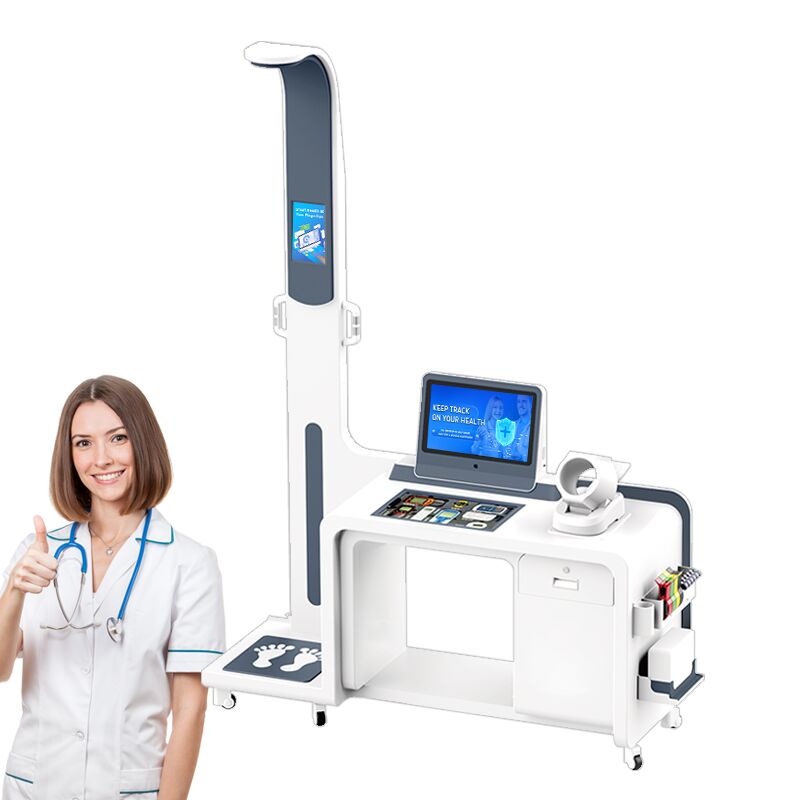

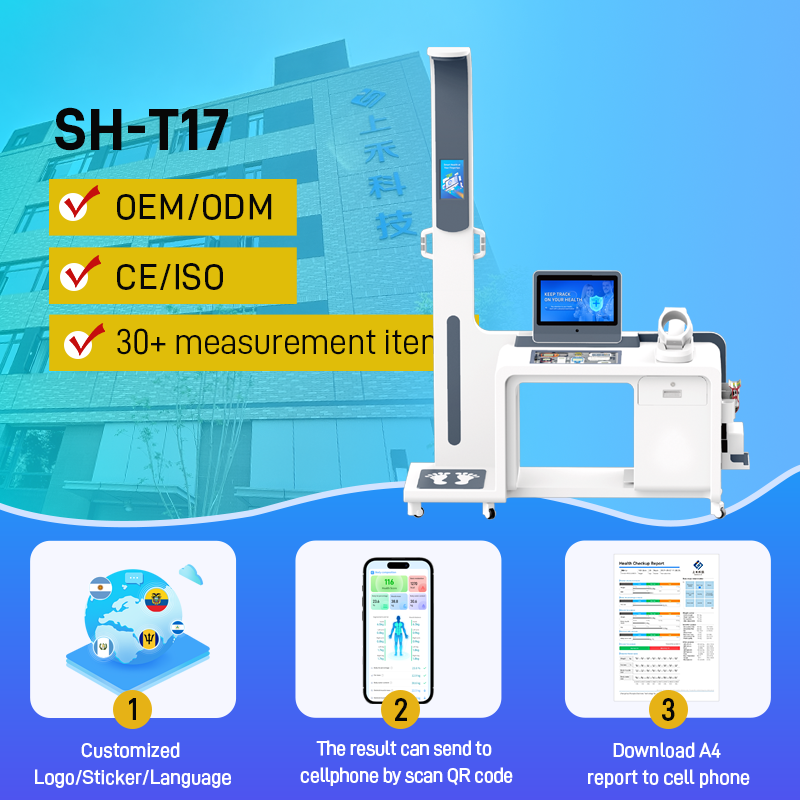

Medical Equipment Health Checkup Kiosk Ecg Machine Clinical Analysis in Body Composition Analyzer Telemedicine Kiosk
Product specification:
| Model | SH-T17 | |
| Control system | Smart OS operating system | |
| Advertising | HD LCD 15.6-inch + 7-inch touch screen, AI robot guided operation | |
| Display: video/picture/measurement result/slogan | ||
| Languages | Supports 17 languages including Thai and Malay, English, can switch languages freely. | |
| Intelligent recognition | Standard: face recognition, user input login; | |
| Optional: Thailand IC/ID card, QR code scanning, etc. (other methods can be customized) | ||
| Height measurement |
System | Using millimeter wave/ultrasonic sensors, high-frequency millimeter wave signal ranging, not affected by light, temperature, etc. |
| Range | 20~200cm; accuracy: 士0.5cm; division value: 0.5cm or 0.1cm (adjustable) | |
| Weight measurement |
System | Precision balanced beam resistive strain sensor |
| Range | 5~500kg; accuracy: 士0.1kg; division value: 0.1kg or 0.01kg (adjustable) | |
| BMI | Adopt the latest WHO standard (can be adjusted according to needs) | |
| Blood pressure | Principle | Intelligent pressurization technology, oscillometric measurement method (supports left and right arm) |
| Range | Pressure: 0-299mmHg(0kPa-39.9kPa), pulse: 40-180 beats/min | |
| Accuracy | Pressure:3mmHg(士0.4kPa), pulse rate: Accuracy is 5% | |
| Body fat | Principle | 4-electrode human bioelectrical impedance method, range 5%-75% |
| Indicators | Body fat percentage, body water percentage, muscle mass percentage, basal metabolic rate, inorganic salts, etc. | |
| Blood oxygen | Finger dip oximeter, range:35%-100%; | |
| Temperature | Infrared forehead temperature gun, optional wireless temperature measurement | |
| Blood sugar | 20-600mg/dl (1.1-33.3mmol/L); 20% when blood glucose concentration> 75mg/dl (4.17mmol/L) | |
| Uric acid | Measuring range: 3-20mg/dl (0.19-1.19mmol/L) | |
| Urinalysis | 14 health indicators including white blood cells, glucose, calcium ions, microalbumin, pH value, etc. | |
| Cholesterol | Measuring range: 100-500mg/dl (2.29-12.93mmol/L) | |
| 12-lead ECG | Standard 12-lead, rapid ECG (optional) | |
| Four blood lipids | Total cholesterol, HDL, triglycerides, LDL | |
| Hemoglobin | Hemoglobin and hematocrit | |
| WHR | Waist circumference and hip measurement | |
| Vision | Vision, astigmatism, color weakness and color blindness, etc. | |
| Health report | A4 color printer; scan QR code by phone to view report and download the A4 report inThai. | |
| Expansion | alcohol test, TCM, mental health, etc. | |
| Data output | Wireless | WiFi: Bluetooth (optional);4G (optional), cloud interface (optional), etc. |
| Wired | RS232 serial port (standard); RJ45 | |
| Data storage | Can store more than 1 million pieces of measurement data and supports U disk export. | |
| System compatible |
Local archives | Data can be transmitted to the customer's software, such as Thailand HIS/LIS system/APP/PC, etc. |
| Self-service membership registration, health screening, historical query, data statistical analysis and management. | ||
| Voltage | AC100V-240V(50Hz/60Hz); | |
| Dimensions | Machine size: 155*53*231.8cm/L*W*H; Net weight: 65kg; Gross weight: 110kg | |
| Package size:170*64*138cm(110kg) | ||
| Use scenarios | Hospital, community service station, disease control center, physica examination center, pharmacy, clinic, shopping mall/supermarket, gym, etc. | |
Certification:
Product description:

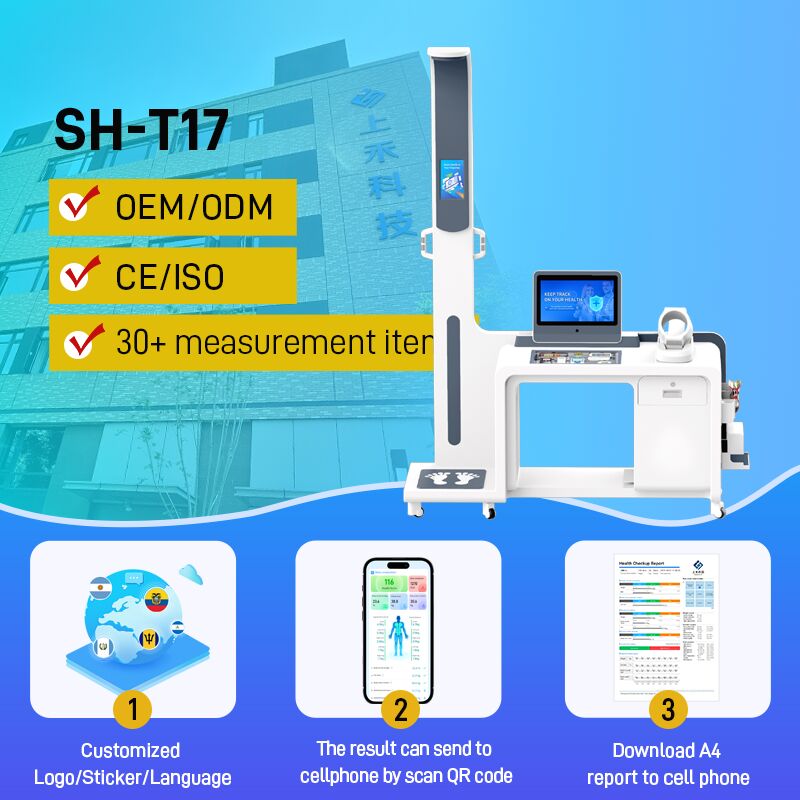

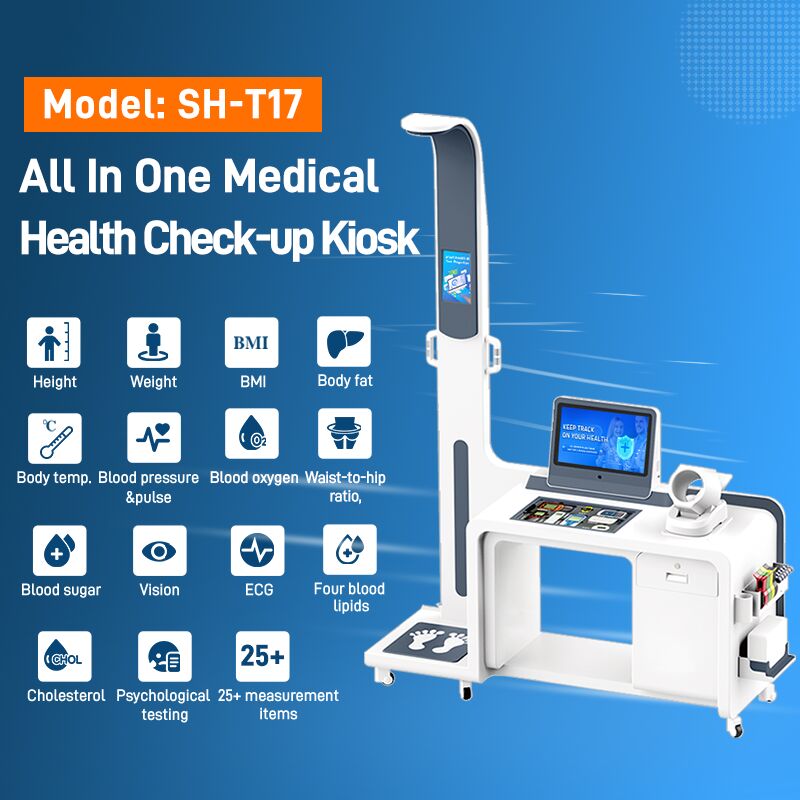

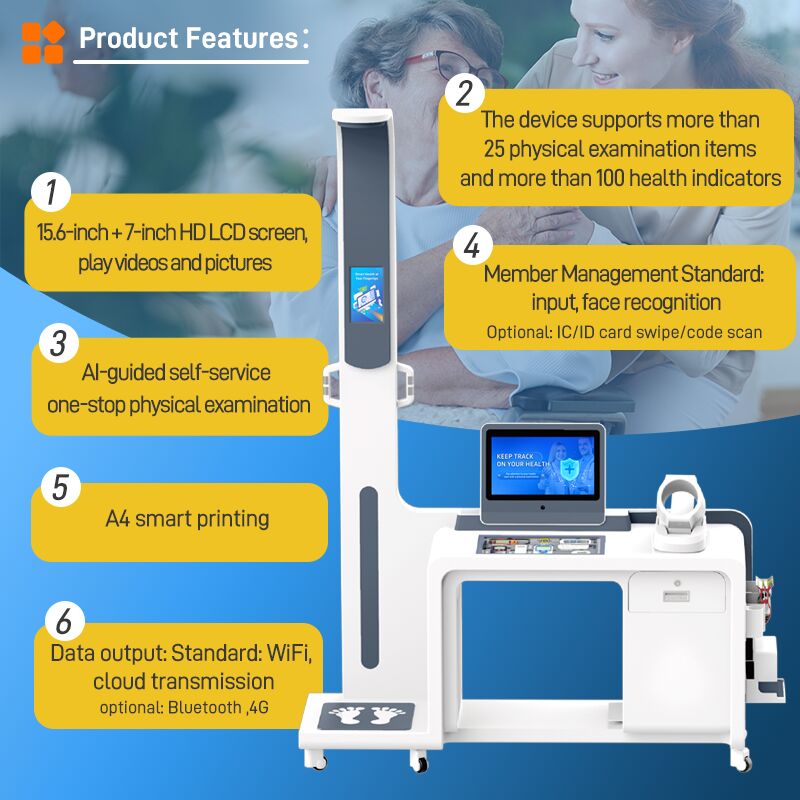

SH-T17 Health Checkup Kiosk Machine Functions:
1.Smart OS operating system
2.15.6-inch + 7-inch LCD touch screen, displays indoor temperature and current time in standby mode, customize videos and images for brand promotion.
3. Three ways to get the report: ①thermal printer②phone report③download report④A4 report
4.AI robot guides operation, automatic voice broadcast measurement results.
5.Ultrasonic/Millimeter wave technology to measure height (non-touch).
6.Precision balanced beam resistive strain sensor.
7.Supports 17 languages including English, can switch languages freely.
8.Intelligent pressurization technology, oscillometric measurement method (supports left and right arm)
9.Intelligent recognition: standard: face recognition, user input login;
10.Blood pressure measurement: 0-299mmHg(0kPa-39.9kPa); Pulse range:40-180 beats/min.
11.Data transfer: RS232 serial port,WiFi (standard); Bluetooth/4G/cloud interface (optional), etc, data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc.
12. Body fat measurement indicators: body fat percentage, body water percentage, muscle mass percentage, basal metabolic rate, inorganic salts, etc.
13.Optional functions:Thailand IC/ID card, QR code, etc.

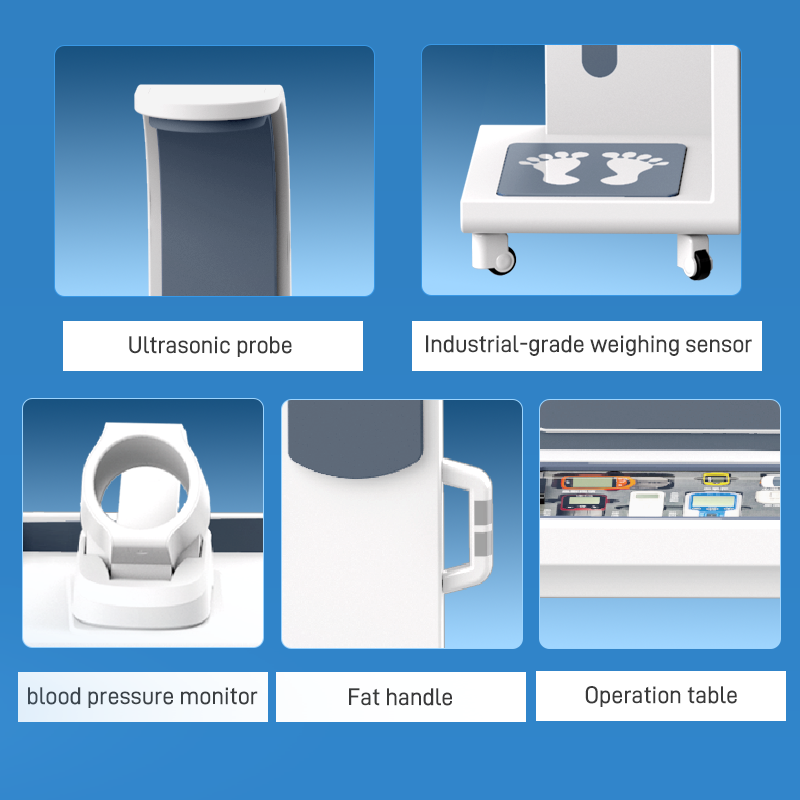

Product details:
Hot sale product:
About company:
What is the SHANGHE Service?
1. 24 hours to reply your inquiries and 72 hours solution response.
2. For one year free warranty and after-sales online technology support.
3. Can provide your best software and hardware customization solution if you need.
4. All scales already exported many countries, support your own logo,OEM/ODM service
5. Own Experienced R&D and factory to help your better use our products, and help you grow your market business based on we have the range of distributor policy.
6. Offer you best solution is our honor! SHANGHE do hope we can build good partnerships in the long term business and help you expand your sales!
