商品の詳細:
|
|
| 起源の場所: | 河南省、中国 |
|---|---|
| ブランド名: | SHANGHE |
| 証明: | CE/ISO13485/OMIL |
| モデル番号: | SH-V5 |
| 書類: | SH-V5.pdf |
|
お支払配送条件:
|
|
| 最小注文数量: | 1セット |
| 価格: | 675usd |
| パッケージの詳細: | 179*41*21cm(20kg)、43*67*49cm(24kg)、0.3CBM |
| 受渡し時間: | 5～15日 |
| 支払条件: | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給の能力: | 月あたり6000セット |
|
詳細情報 |
|||
| 製品名: | 商業屋外コイン式体重計体組成脂肪スケール身長と体重バランス Operad OEM BMI | キーワード: | 高さおよび重量のスケール |
|---|---|---|---|
| 材料: | 金属のキャビネット | 力: | ≤15W |
| カスタマイズされた: | 言語/ロゴ/ステッカー/色 | 梱包詳細: | 179*41*21cm(20kg)、43*67*49cm(24kg)、0.3CBM |
| 言語: | 英語を含む23以上の言語をサポートし、自由に言語を切り替えることができます | 使用法: | 病院、診療所、薬局、学校、スポーツジム、ショッピングモールなど |
| データ転送: | 標準: RS232,WiFi;オプション: ブルートゥース,3G/4G,RJ45 | 寸法: | 550*390*2350mm |
製品の説明
Commercial Outdoor Coin Operated Weighing Scale Body Composition Fat Scale Height and Weight Balance Operad OEM BMI
Product specification: 产品规格:
| Model | SH-V5 | |
| Control system | Smart OS operating system | |
| Languages | Supports 17 languages including English, can switch languages freely. | |
| Height measurement |
System | Using millimeter wave/ultrasonic sensors, high-frequency millimeter wave signal ranging, not affected by light, temperature, etc. |
| Range | 20~200cm; accuracy: ±0.5cm; division value: 0.5cm or 0.1cm (adjustable) | |
| Weight measurement |
System | Precision balanced beam resistive strain sensor |
| Range | 5~500kg; accuracy: ±0.1kg; division value: 0.1kg or 0.01kg (adjustable) | |
| BMI | Adopt the latest WHO standard (can be adjusted according to needs) | |

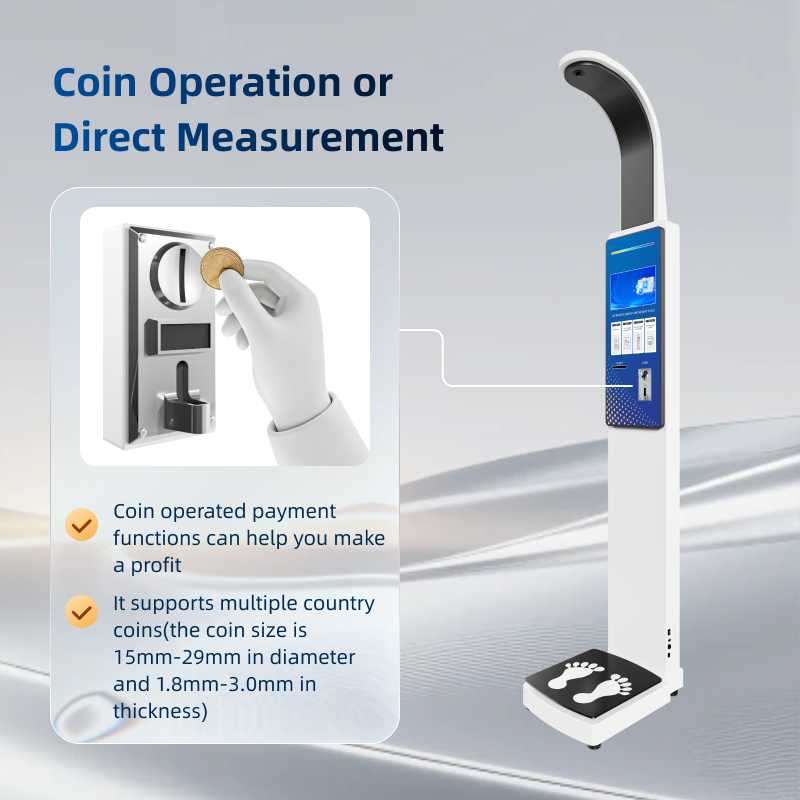

| Coin Operated | The coin acceptor can recognize coins from different countries. The coin size is 15mm-29mm in diameter and 1.8mm-3.0mm in thickness. | |

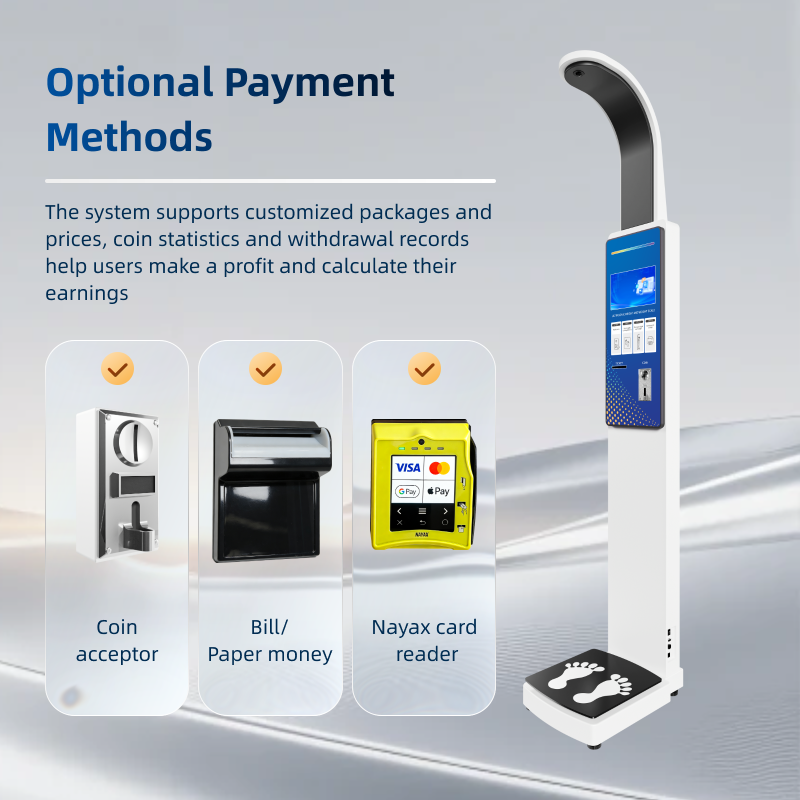

| Optional payment | Paper money/Nayax card reader(Visa/PayPal/Google Pay/Apple Pay/ scan QR code)payment method help user make profits. | |
| Thermal printer | Micro thermal printer automatic paper cutting, paper size:50*57mm, customizable header and footer. | |
| Get report | Thermal printing; scan QR code by phone to view report and download the A4 report. | |
| Expansion | Body fat, blood pressure, temperature, blood oxygen, QR/barcode code,face recognition, IC/ID card, etc. | |
| Advertising | LCD screen | HD LCD10.2-inch display touch screen, AI robot guided operation |
| Picture | PNG, JPG/JPEG and other common formats | |
| Video | 3GP, MP4, RMVB, RMFLV, MP4, AVI and other common formats | |
| Slogan 口号 | scrolling ad text | |
| Data transfer | Wireless | WiFi; Bluetooth/4G/cloud interface (optional), etc. |
| Wired | RS232; RJ45(optional), etc. | |
| Data storage | Can store more than 1 million pieces of measurement data and supports U disk export. | |
| System compatible |
Local archives | Data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc. |
| Self-service membership registration, health screening, historical query, data statistical analysis and management. | ||
| Voltage | AC100V-240V(50Hz/60Hz); Power: ≤15W | |
| Dimensions | Machine size: 55*39*235cm/L*W*H; Net weight: 40kg; Gross weight: 45kg | |
| Package size:180*49*22cm(20kg); 68*49*40cm(25kg); | ||
| Use scenarios | Pharmacy, clinic, hospital, community service station, disease control center, physica examination center, gym, shopping mall/supermarket, etc. | |
Certification:
Product description:

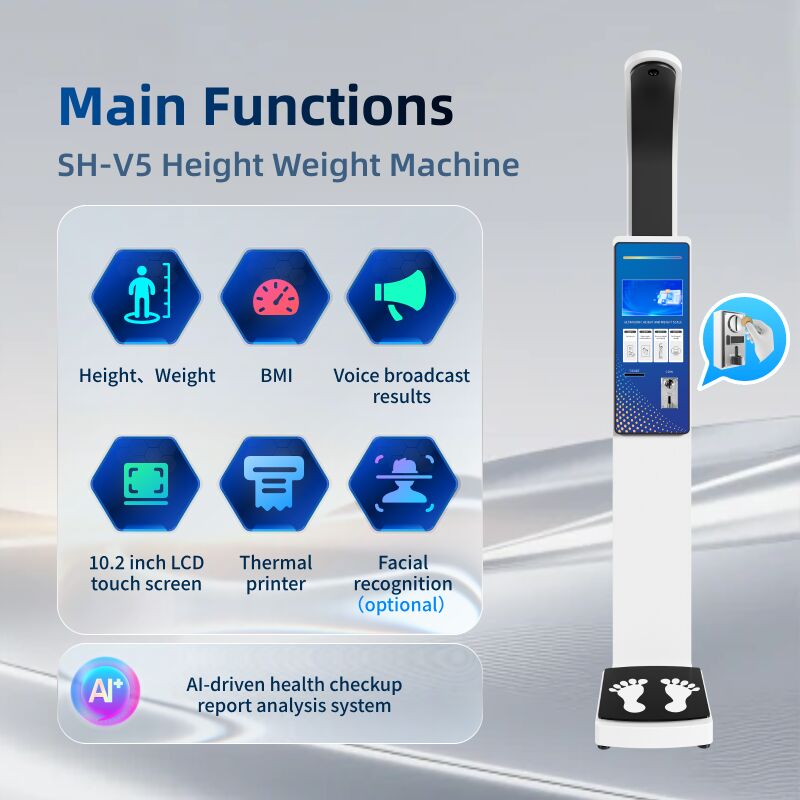

SH-V5 Coin Operated Height Weight Machine Functions:
1.The main function is height, weight, BMI, thermal printer.
2.10.2-inch LCD touch screen, displays indoor temperature and current time in standby mode, customize videos and images for brand promotion.
3.Coin operated(paper money/Nayax card optional)payment function helping customers make profits.
4.AI robot guides operation, automatic voice broadcast measurement results.
5.Ultrasonic/Millimeter wave technology to measure height (non-touch).
6.Precision balanced beam resistive strain sensor.
7.Supports 17 languages including English, can switch languages freely.
8.Micro thermal printer automatic paper cutting, paper size:50*57mm.

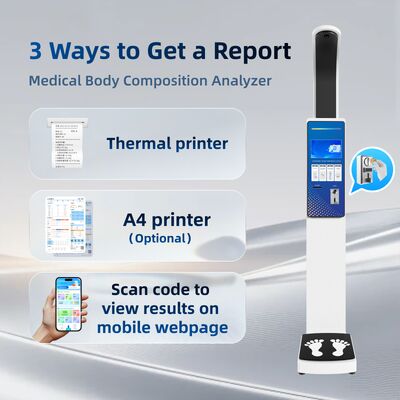

9.Three ways to get the report: ①thermal printer②phone report③download report
10.Data transfer: RS232 serial port,WiFi (standard); Bluetooth/4G/cloud interface (optional), etc, data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc.
Product details:
Hot sale product:
About company:
What is the SHANGHE Service?
1. 24 hours to reply your inquiries and 72 hours solution response.
2. For one year free warranty and after-sales online technology support.
3. Can provide your best software and hardware customization solution if you need.
4. All scales already exported many countries, support your own logo,OEM/ODM service
5. Own Experienced R&D and factory to help your better use our products, and help you grow your market business based on we have the range of distributor policy.
6. Offer you best solution is our honor! SHANGHE do hope we can build good partnerships in the long term business and help you expand your sales!
