Zhengzhou shanghe electronic technology co. LTD

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine

商品の詳細:
起源の場所: 河南省、中国
ブランド名: SHANGHE
証明: CE/ISO13485/OMIL
モデル番号: SH-10F
書類: SH-10F-2025.pdf
お支払配送条件:
最小注文数量: 1セット
価格: 1072usd
パッケージの詳細: 121*48*36cm(23kg)
受渡し時間: 5~15日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給の能力: 月額6000セット
  • 詳細情報
  • 製品の説明

詳細情報

製品名: 人気の身体分析マシン総合分析身体ステータスBMI脂肪マシン キーワード: BMIファットマシン
電極: 8点接触電極 頻度: 20KHz,100KHz
アプリケーション: ジム、クリニック、栄養センター、美容室、ヘルスセンター、 パッキング: 121*48*36cm(23kg)
寸法(mm): 55*38*115センチメートル/長さ*幅*高さ データ転送: 標準: RS232,WiFi;オプション: ブルートゥース,3G/4G,RJ45
言語: 英語を含む 17 言語をサポートし,自由に言語を切り替えることができます

製品の説明

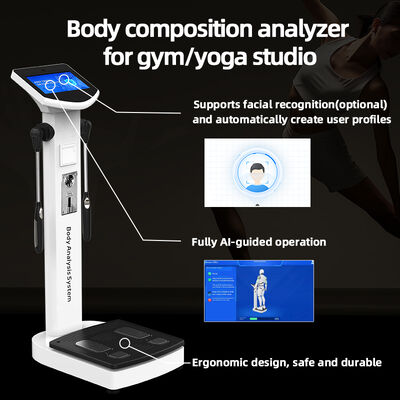

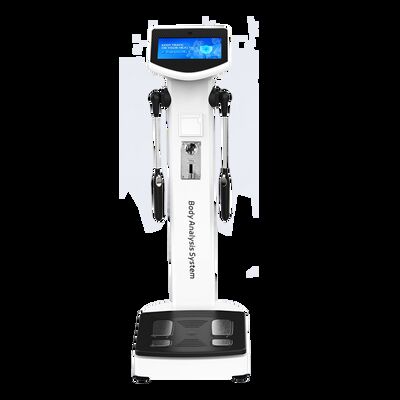

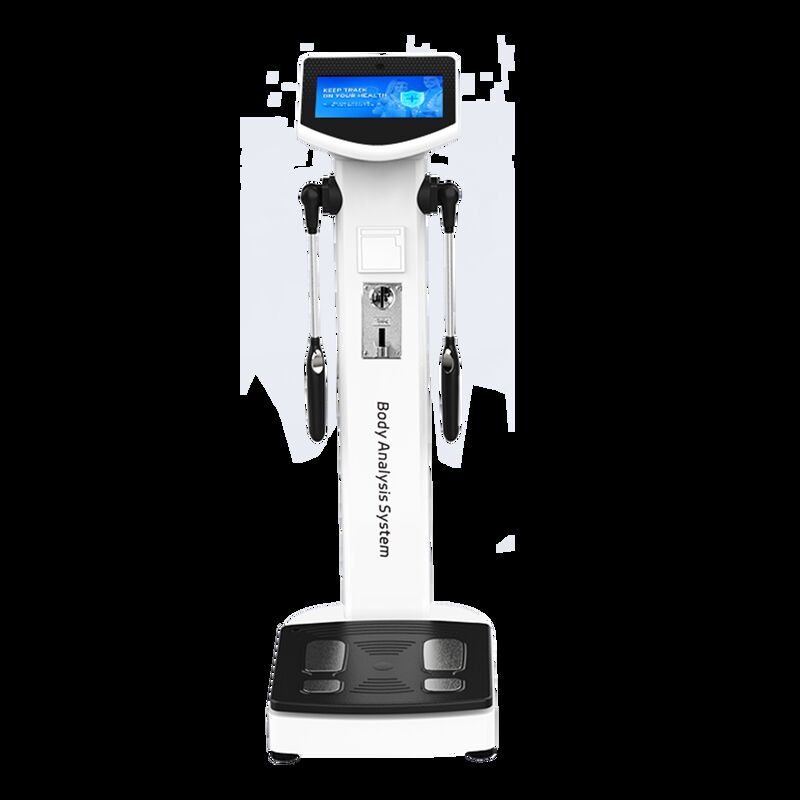

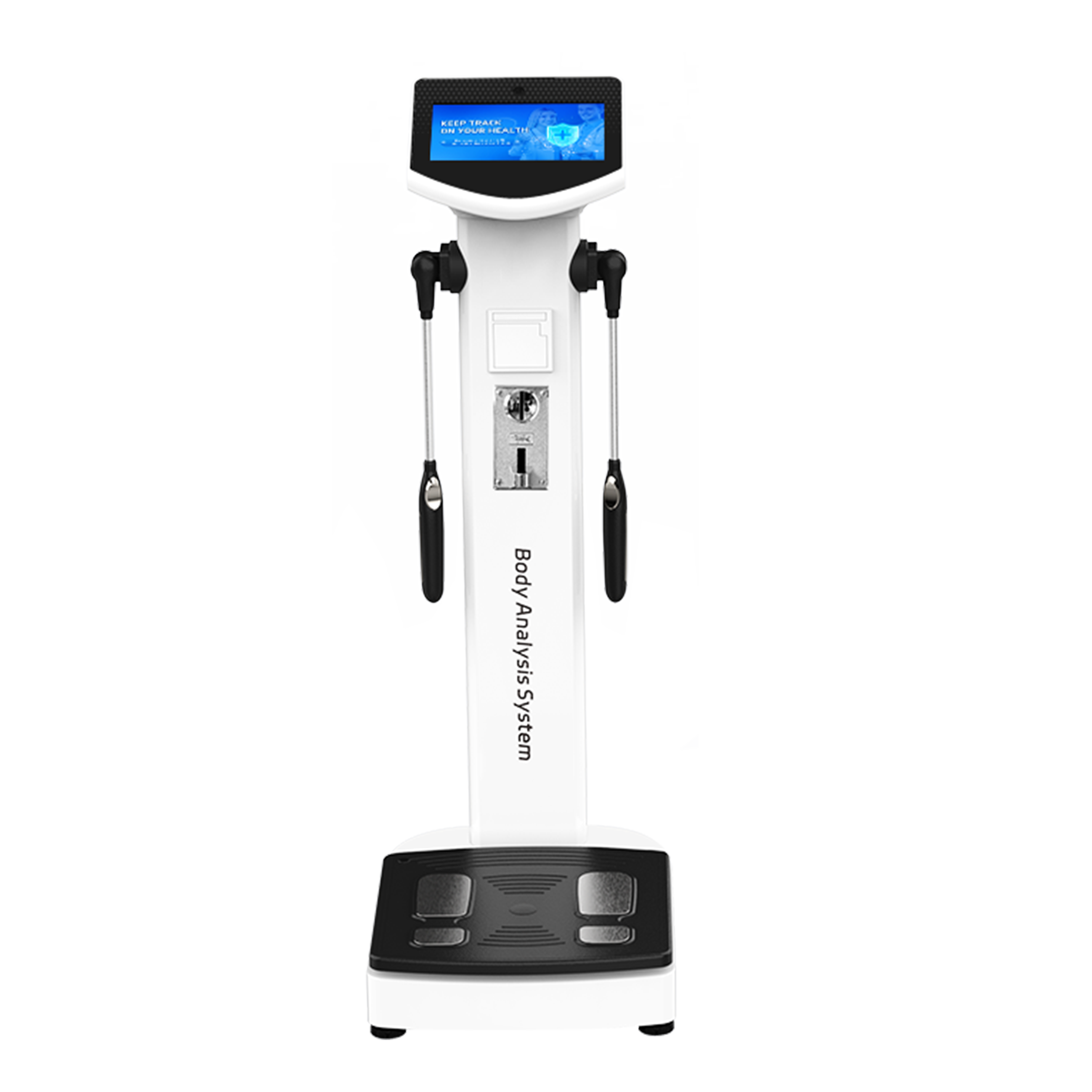

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine


Certifications:

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 0

Product Specifications:

Model
SH-10F

Measurement Items
Weight, BMI, body shape, ideal weight, weight control, healthy weight range; basic assessment: fat mass, body fat percentage, body water content, water percentage, skeletal muscle mass, muscle mass, muscle percentage, basal metabolism, waist-to-hip ratio, etc.



Body composition analyzer
8-point contact electrode, multi-frequency bioelectrical impedance (BIA)
Frequency: 20KHz, 100KHz
Impedance measurement range: 10-2000Ω
Current: ≤420±20μA
Segments:5 parts (left arm, right arm, trunk, left leg, right leg)
Measurement time
≤60 seconds

Weight Measurement
Measure range: 5-500kg
accuracy: ±0.1kg, division value: 0.1kg or 0.01kg adjustable
Measure mode: precise balanced sendor


Local Archives
This device supports one-step self-service registration and measurement, health screening, historical data query, big data
statistical analysis and management, and provides health guidance services, dietary suggestions, exercise planning, etc. based on
measurement data.

Data Output Format
Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45, data can be transmitted to the customer's software, such as Fitness Center Membership Management System/APP/PC, etc.
Languages
Supports 17 languages including Spanish and Arabic, English, can switch languages freely.
Display Mode
AI robot guided operation, HD LCD 10.2-inch display touch system, play pictures and videos in standby mode.
Report Output
①Thermal printing; ②scan QR code by phone to view and download the A4 report; ③A4 printer optional
Coin operated(Optional)
The coin acceptor can recognize coins from different countries. The coin size is 15mm-29mm in diameter and 1.8mm-3.0mm in thickness
Power Supply Voltage
AC160v-250v,50HZ
Overall dimension
550*380*1130mm (L*W*H)
Packing Size
121*48*36cm(23kg)
Identify(Optional)
Face recognition, QR code/barcode, Enter account/mobile number,IC/ID card, etc.


Product Description:

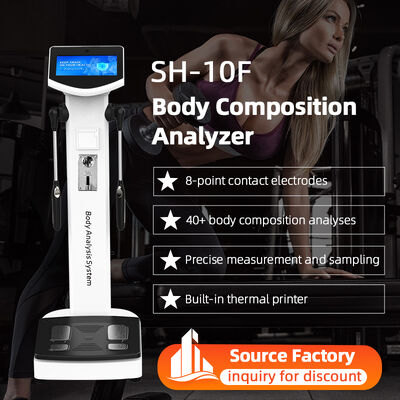

SH-10F Body Composition Analyzer Machine Functions:
1.The main function is weight, BMI, body composition analysis, thermal printer, face recognition(optional).
2.10.2-inch LCD touch screen, displays indoor temperature and current time in standby mode, customize videos and images for brand promotion.
3.Optional: coin operated payment function helping customers make profits.
4.AI robot guides operation, automatic voice broadcast measurement results.
5.Precision balanced beam resistive strain sensor.
6.Supports 17 languages including English, can switch languages freely.
7.8-point contact electrode, multi-frequency bioelectrical impedance (BIA). Indicators: body fat percentage, body water percentage, muscle mass percentage, basal metabolic rate, inorganic salts, etc.
8.Frequency: 20KHz, 100KHz
9.Applicable Age: 6-99 years old
10.Segments:5 parts (left arm, right arm, trunk, left leg, right leg)
11.Micro thermal printer automatic paper cutting, paper size: 50*57mm.
12.Three ways to get the report: ①thermal printer②phone report③download report
13.Data transfer: RS232 serial port, WiFi (standard); Bluetooth/4G/cloud interface (optional), etc, data can be transmitted to the
customer's software, such as HIS/LIS system/APP/PC, etc.
14.Optional Expansion: facial recognition, IC/ID card reader, barcode scanner, etc.


Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 1

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 2

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 3

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 4

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 5

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 6

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 7

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 8
